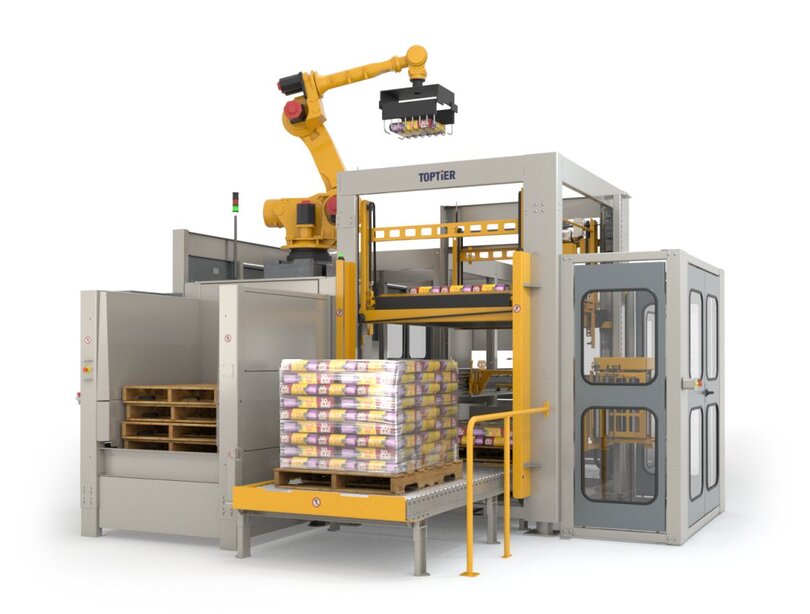

Robotier Hybrid Palletizer Robotic palletizer

Name: Robotier Hybrid Palletizer Robotic palletizer
Brand: toptier

Hybrid Robotic Palletizing Systems – Precision Meets Performance

Choose TopTier Hybrid Robotic Palletizing Systems to keep your business productive and competitive. Built for precision, speed, and reliability, our systems set the standard for automated palletizing.

For businesses that demand precision, speed, and reliability in their automated palletizing processes, our palletizing systems stand as a beacon of innovation. Engineered for excellence, these systems integrate cutting-edge technology with robust design to meet the rigorous demands of modern industry.

Key Features: • Low-Infeed RoboTier Design – Utilizes advanced end-of-arm tooling for higher speed motion and secure product handling. • Bottom Support Handling – More flexible and secure than vacuum top picking; ideal for bagged products. • Modular Options – Add concurrent stretch wrapping, pallet handling, sheets & liners, and load handling. • Safety Compliance – Category 3 PL-d per EN ISO 13849-1 with controlled entrance protocols. • Performance – 1–3 layers per minute.

produced by

Request a quote Watch the video

Up to 1-3 layers per minute

able to handle every product type

easy to use

overview

TECHNOLOGY

RoboTier hybrid robotic palletizing system utilizes end of arm tooling that supports product from the bottom, allowing higher speed robot motion and advanced product handling security. Bottom support offers a significant improvement over typical robot product handling methods such as vacuum top picking that is less flexible and secure, and clamping systems that necessitate looser loads.

Bottom support is achieved by assembling layers on an apron with products loosely spread to allow removal of the bottom support tool. Loose spreading allows faster robot speeds, as exact product placement is not critical. Once a layer is completed, four-sided clamping centers the layer on the pallet and a tight uniform layer is deposited. Vertical travel capabilities of the apron reduce robot reach requirements allowing use of the smaller, faster, and more economical Fanuc robots. The layer apron also provides a queuing platform for continued layer building while optional concurrent stretch wrapping occurs.

CONTROLS

RoboTier hybrid robotic palletizing product handling innovations are enhanced by advanced controls architecture for robotic palletizing systems. A Fanuc controller with very simple code that cannot be modified directs robot motion based on PLC instructions. In effect, the robot is an electronic slave to the Allen Bradley CompactLogix PLC master controller and B&R PC 12" color touchscreen HMI. All automatic and manual palletizer functions are controlled using the HMI touchscreen; robot controls training or experience is unnecessary. EasyStack programming software installed on the PC HMI creates patterns quickly and easily without PLC or robot programming.

Our Robotier hybrid robotic palletizing systems deliver unmatched performance in efficiency, reliability, and safety. They represent the pinnacle of what automated palletizing technology can achieve, making them an indispensable asset for any business looking to optimize their operations.

Experience a game-changing transformation in your palletizing process by installing the hybrid robotic palletizers available at TopTier now.

TOPTIER ROBOTIER ROBOTIC PALLETIZER

DATA SHEETS

Rates	1-3 layers per minute
Infeed	Low
Products	Every product type, including case, bag, tray, trayless, open top, lidded, overwrapped or unwrapped, bundles, nested, display pack, totes, and more
Minimum Case Dimension	6"
Maximum Case Dimension	29"
Maximum Case Weight	220lbs
Minimum Layer Dimension	38"
Maximum Layer Dimension	50"
Maximum Layer Weight	500lbs
Load Height	60”
